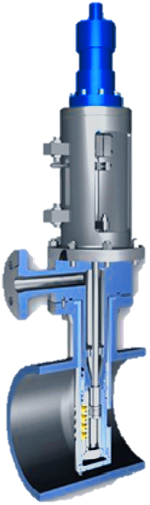

Desuperheater

The Worcot UK Desuperheater Systems provide a convenient method of reducing superheated steam or other vapors to temperatures approaching saturation. The super heated fluid passes through a section of pipe into which is fitted the Spray nozzle protrudes into the flow path, introduces coolant flow in the same direction as the super heated fluid.

Desuperheaters

Features

• Superior atomization through multi-nozzle injection
• Available Control of cooling water injection through integral or upstream control valve
• High rangeability
• Best mixing of steam and water, even at minimal loads of 5%
• Very short vaporization distances

Applications

• Combined pressure & temperature control
• Steam temperature control
• Cryogenic temperature control

Design standard

• ASME B16.34

Pressure classes

• ASME 150 – 2500

Main Header Sizes

• 6” – 60” (25mm – 1500mm)
• (other sizes under request)

Materials

• Cast carbon, alloy or stainless steel

Advantages

• Required coolant pressure steam minimum 5 bar
• Shorten distance of pipe straight
• Small nominal pressure drop

Industries

• Power Plant
• Process gases
