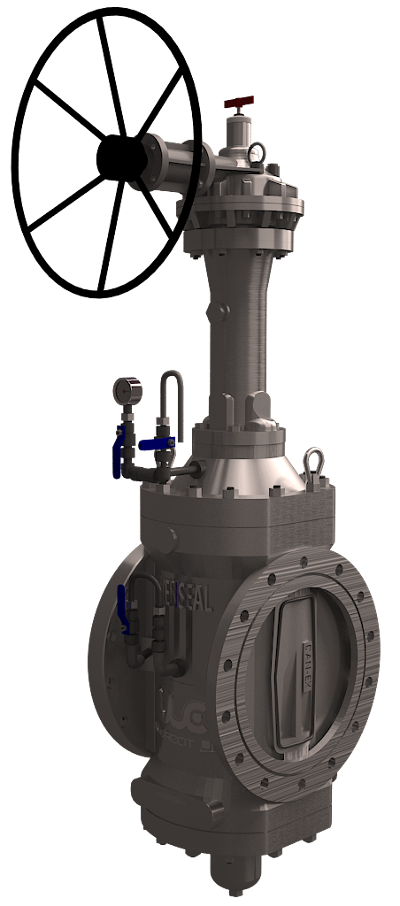

Plug Valve

The SVENSEAL Plug valves have supplied and conbibuted to lhe outstanding perfonnance for the processes of companies. Now today lhe SVENSEAL Is lhe one of Worcot UKTM, Whelher It Ia for a new construcltons or MROJob, SVENSEAL Plug valves are lhera for lhe benefits of our customers.

Wllh modem technology In manufacturing, SVENSEAL Is able to provide high quality, yet economical manufacturlng,provldes our customers wilt! lhe most competitive prices. As a manufacturing center for Double Block & Bleed valves with high grade expertise and state of the art technology.

Double Block & Bleed Valves

Features

  • Daalgned to meet Oil & Gas transmission, loading, unloading needs. Una sealing is achieved by body and wedges cut from each side of the plug with or wiltlout the assistance of soft seat rings.
  • The sealing is positively made on each side of the plug (double block), and the media kept inthe plug port area can ba bleed into upstream or to the con1Biner to pravent from explosion.
  • The Valve can be used for assuring metering acc:u e cy and SCADAsystems.

Applications

  • Geothermal systems
  • LNG/Cryogenlcs
  • Flue gas isolation & control
  • Process and Pipe line

Design standard

  • ASME B16.34/ BS5351, ASME B16.10,API6FA,API598,API6D

Products Range

Standards in Slip Double Block and Bleed Valve

  • Pressure Rating :ANSI Class 1501300/600190011500
    • Size :2″- 24″
    • Temperature Range: -20″F(-29″C) TO+ 350.F(+176.79C)
    • Connaclions: Flanged, Screwed, Welded (Butt, Socket)
    • Wrench, enclosed gear operated or actuated
    • Full Bore Twin Slip Double Block and Bleed Valves
  • Pressure Rating :ANSI Class 15013001600/90011500
    • Size :2″- 24″
    • Temperatura Range: -20″F(-29″C) TO+ 350″F(+176.7″C)
    • Connections :Flanged, Screwed, Welded (Butt, Socket)
    • Hand wheel, enclosed gear operated or actuated
    • 4-Way Twin Slip Double Block and Bleed Valves
  • Pressure Rating :ANSI Class 150130016001900/1500
    • Size :2″- 24″
    • Temperatura Range: -20″F(-29″C) TO+ 350″F(+176.rC)
    • Connections: Flanged, Screwed, Welded (Butt, Socket)
    • Hand wheel, enclosed gear operated or actuated

Materials

  • Body: Carbon steels, Cast Iron, Ductile ircn,Alloy steels, Stainless steels, NickelAluminum Bronze, lltanlum
  • Seat: EPDM, NBR, Fluorc Rubber, PTFE, FKM, Carbon steels, Stainless steels, Duplex, Super Duplex, lncoloy, Monel, lnconei,Trtanium, Olhar materials under request.
